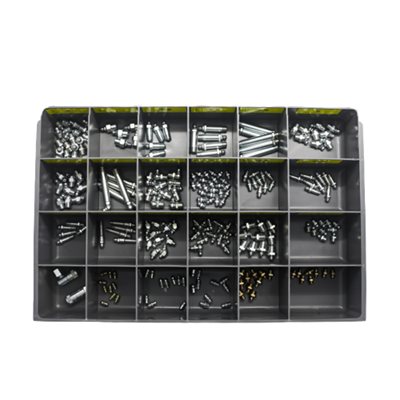

ASS. GREASE FITTING STANDARD MASTER

Code de produit : KDK-3203

ID	Type	Diamètre	Filet	Longueur	QTE
GF-U1610	Droit Straight	1/8 NPT	27	11/16 mm	25
GF-U1607	Droit long Straight long	1/8 NPT	27	1.1/4 mm	5
GF-U1669	Droit long Straight long	1/8 NPT	27	1.3/4 mm	5
GF-U1684	Droit long Straight long	1/8 NPT	27	2.5/8 mm	5
GF-U1688	45’	1/8 NPT	27	57/64 mm	10
GF-U1612	65	1/8 NPT	27	27/32 mm	10
GF-U1649	65’	1/8 NPT	27	2.3/4 mm	5
GF-U1613	90’	1/8 NPT	27	27/32 mm	10
GF-U1618	Femelle droit Straight female	1/8 NPT FEM	27	9/32 mm	5
GF-U1720	Filet conique Taper thread	1/8 NPT	27	5/8 mm	10
GF-U1641	Droit Straight	1/4	28	35/64 mm	25
GF-U1652	Droit long Straight long	1/4	28	11/16 mm	10
GF-U1680	Droit long Straight long	1/4	28	31/32 mm	10
GF-U1698	Droit long Straight long	1/4	28	1.1/8 mm	5
GF-U3014	Droit Straight	1/4	28	1.5/8 mm	5
GF-U1637	45’	1/4	28	13/16 mm	10
GF-U1911	90’	1/4	28	3/4 mm	25
GF-U3038	Filet conique Taper thread	1/4	28	37/64 mm	10
GF-U1100938	Droit Straight	5/16	24	21/32 mm	10
GF-U5546060	Type à enfoncer Drive in	3/16		15/32 mm	10
GF-U5546068	Type à enfoncer Drive in	1/4		35/64 mm	10
GF-U5546074	Type à enfoncer Drive in	5/16		35/64 mm	10
GF-U1627	Droit Straight	1/4	18	7/8 mm	10
GF-U308730	Grease gun coupler				1
GF-U308730-90	Grease gun coupler 90’				1

Code	Quantité disponible / Disponibilité	Quantité
KDK-3203	2 / En inventaire
