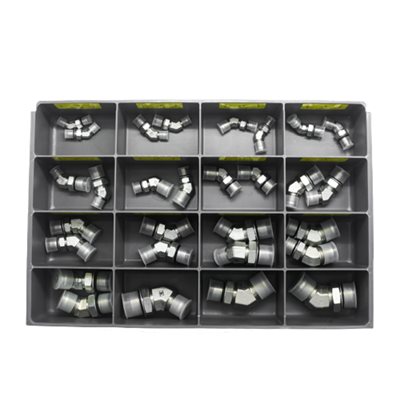

ADAPTEURS HYDRAULIQUES MÂLE JIC / MÂLE SAE O-RING 45’
Code de produit : KDK-3205
| ID | Filet mâle JIC | Filet mâle ORB | Référence | QTE |
| H5365-04-04 | -4 (7/16-20 | -4 (7/16-20) | 6802-04-04 | 2 |
| H5365-04-06 | -4 (7/16-20 | -6 (9/16-18) | 6802-04-06 | 2 |
| H5365-06-04 | -6 (9/16-18) | -4 (7/16-20) | 6802-06-04 | 2 |
| H5365-06-06 | -6 (9/16-18) | -6 (9/16-18) | 6802-06-06 | 2 |
| H5365-06-08 | -6 (9/16-18) | -8 (3/4-16) | 6802-06-08 | 2 |
| H5365-08-06 | -8 (3/4-16) | -6 (9/16-18) | 6802-08-06 | 2 |
| H5365-08-08 | -8 (3/4-16) | -8 (3/4-16) | 6802-08-08 | 2 |
| H5365-08-10 | -8 (3/4-16) | -10 (7/8-14) | 6802-08-10 | 2 |
| H5365-10-08 | -10 (7/8-14) | -8 (3/4-16) | 6802-10-08 | 2 |
| H5365-10-10 | -10 (7/8-14) | -10 (7/8-14) | 6802-10-10 | 2 |
| H5365-10-12 | -10 (7/8-14) | -12 (1.1/16-12) | 6802-10-12 | 2 |
| H5365-12-10 | -12 (1.1/16-12) | -10 (7/8-14) | 6802-12-10 | 2 |
| H5365-12-12 | -12 (1.1/16-12) | -12 (1.1/16-12) | 6802-12-12 | 2 |
| H5365-12-16 | -12 (1.1/16-12) | -16 (1.5/16-12) | 6802-12-16 | 1 |
| H5365-16-12 | -16 (1.5/16-12) | -12 (1.1/16-12) | 6802-16-12 | 1 |
| H5365-16-16 | -16 (1.5/16-12) | -16 (1.5/16-12) | 6802-16-16 | 1 |
