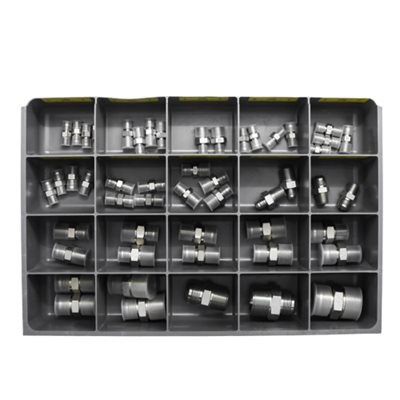

ADAPTEURS HYDRAULIQUES MÂLE JIC / MÂLE NPT DROIT
Code de produit : KDK-3222
| ID | Filet mâle JIC | Filet mâle NPT | Référence | QTE |
| H5205-04-02 | -4 (7/16-20) | -2 (1/8-27) | 2404-04-02 | 4 |
| H5205-04-04 | -4 (7/16-20) | -4 (1/4-18) | 2404-04-04 | 4 |
| H5205-04-06 | -4 (7/16-20) | -6 (3/8-18) | 2404-04-06 | 2 |
| H5205-05-02 | -5 (1/2-20) | -2 (1/8-27) | 2404-05-02 | 4 |
| H5205-05-04 | -5 (1/2-20) | -4 (1/4-8) | 2404-04-08 | 4 |
| H5205-06-02 | -6 (9/16-18) | -2 (1/8-27) | 2404-06-02 | 4 |
| H5205-06-04 | -6 (9/16-18) | -4 (1/4-18) | 2404-06-04 | 4 |
| H5205-06-06 | -6 (9/16-18) | -6 (3/8-18) | 2404-06-06 | 4 |
| H5205-06-08 | -6 (9/16-18) | -8 (1/2-14) | 2404-06-08 | 2 |
| H5205-08-06 | -8 (3/4-16) | -6 (3/8-18) | 2404-08-06 | 2 |
| H5205-08-08 | -8 (3/4-16) | -8 (1/2-14) | 2404-08-08 | 2 |
| H5205-08-12 | -8 (3/4-16) | -12 (3/4-14) | 2404-08-12 | 2 |
| H5205-10-08 | -10 (7/8-14) | -8 (1/2-14) | 2404-10-08 | 2 |
| H5205-10-12 | -10 (7/8-14) | -12 (3/4-14) | 2404-10-12 | 2 |
| H5205-12-08 | -12 (1.1/16-12) | -8 (1/2-14) | 2404-12-08 | 2 |
| H5205-12-12 | -12 (1.1/16-12) | -12 (3/4-14) | 2404-12-12 | 2 |
| H5205-12-16 | -12 (1.1/16-12) | -16 (1-11.1/2) | 2404-12-16 | 2 |
| H5205-16-16 | -16 (1.5/16-12) | -16 (1-11.1/2) | 2404-16-16 | 1 |
| H5205-16-20 | -16 (1.5/16-12) | -20 (1.1/4-11.1/2) | 2404-16-20 | 1 |
| H5205-20-20 | -20 (1.5/8-12) | -20 (1.1/4-11.1/2) | 2404-20-20 | 1 |
